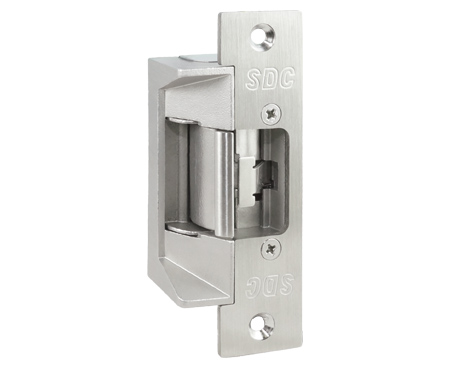

3 Hour Fire Rated Strike: UniFLEX™ 45F

Posted by Security Door Controls on March 8, 2021 at 10:00 AM

The 45F fire-rated Grade 1 strike is designed with a durable, stainless steel die cast body. Engineered with corrosion resistant components and fewer moving parts for maximum life, it's compatible with any access control. SDC's line of electric door strikes accommodate several types of mechanical locksets, door and frame styles.

Read More

Topics: Product Series

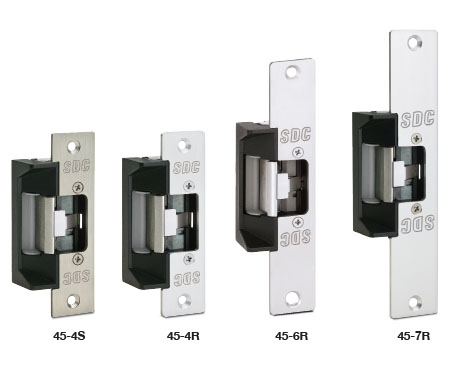

Striking Adaptability: 45 Series Universal Electric Strike

Posted by Security Door Controls on March 7, 2021 at 12:47 PM

The SDC 45 electric strike is designed for use with locksets with up to 3/4” latchbolts*. The quality construction makes the 45 series ideal for high traffic applications. The compact low profile design enables quick and easy installation where jamb space is limited.

Choose from a Universal Electric Strike package that includes three faceplates or standard strike package with choice of 4 different faceplates to accomodate virtually any application. Full monitoring is standard.

  • For 5/8" latch or 3/4" latch with 1/8" door gap
  • Latch position status standard Keeper closed & deadlocked/unlocked status standard
  • Field selectable failsecure - failsafe
  • Field selectable voltage, 12/24V AC/DC 1/4" Horizontal alignment adjustment
  • Low profile, 1-3/16" deep
  • Plug-in wire connectors
  • Mounting tabs Non-handed
  • All stainless steel parts with durable die cast body for corrosion resistance
  • Fewer moving parts for maximum life
  • Stainless steel standard with square corner faceplate
  • Aluminum standard with radius corner faceplate
  • ANSI/ BHMA A156.31, Grade 2
Read More

Topics: Product Series
