SDC's UniFLEX™ Electric Strikes

Posted by Security Door Controls on May 26, 2022 at 3:00 PM

SDC's UniFLEX™ electric strike products feature an interchangeable faceplate design.

Why should you care? The interchangeable faceplate design allows for these strikes to meet a variety of applications. Simply change the faceplate to meet your specific needs!

SDC's 55 series and 45 series electric strikes are available in a variety of configurations to accommodate several types of mechanical locksets and door and frame styles - as well as failsafe and failsecure applications.

SDC’s 55 series 3/4” latchbolt electric strikes are heavy duty. They are designed for installation in hollow metal frames for access control of cylindrical locksets, mortise locksets with or without deadbolts and mortise exit devices. 55 series strikes accept 3/4” throw latchbolts and up to 1” throw deadbolts. The choice of six application faceplates eliminates the need for centerline relocation, making them ideal for new or retrofit, high security access control applications.

SDC’s 45 series 5/8” latchbolt electric strikes are centerline latch entry strikes designed for use with cylindrical locksets and mortise locksets without deadbolt for both metal and wood frames. 45 series strikes accept 5/8” throw latchbolts or up to ¾” throw latchbolts with 1/8” door gap. Centerline latch entry strikes require the latch to enter at the strike “centerline” located exactly between the top and bottom of the strike faceplate.

As an additional benefit, we have created all-in-one part numbers that come with the electric strike and three faceplates for the most common applications.



Check out our new Electric Strikes page for more information!

More Information

Read More

Topics: Access Control, Design, electric strikes, strikes, locking devices

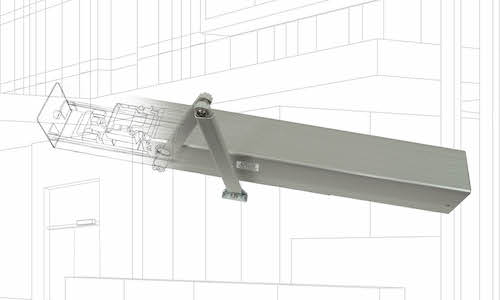

SDC's AUTO Operators Work Well With Electric Latch Retraction Applications

Posted by Security Door Controls on April 22, 2022 at 10:00 AM

SDC's AUTO series operators can power all of SDC's motorized ELR products.

Why should you care?
AUTO series operators eliminates the need for a separate power supply to power latch retraction products with it's own built in 1 Amp+ power supply!

Since 2012, when SDC launched the QuietDuo™ LR100 series – the first retrofit motorized ELR kits to convert mechanical exit devices – we’ve been “quietly” leading in electric latch retraction upgrades for access control.

SDC now provides these same high performing motorized ELR features in the new American Made S5000 series storefront and S4000 series industrial electrified exit devices.

The new electrified devices, in addition to the existing LR100 series retrofit ELR kits and 7600 series motorized ELR mortise locks are conveniently compatible with low energy operators including SDC's AUTO series.

Highlights of our AUTO series operators include:

  • Built-in 1 Amp+ power supply
  • Single-button, self-tuning setup
  • Onboard lock sequencing

https://www.sdcsecurity.com/Auto-EntryControl.htm



Read More

Topics: Electric Latch Retraction, Access Control, Design, Auto EntryControl, Automatic Door Opener, ADA

SDCs Approach To Exit Devices

Posted by Security Door Controls on August 23, 2021 at 8:30 AM

SDC’s approach to exit devices is focused on providing locksmiths, dealers and integrators with opportunities in retrofitting existing mechanical devices to electronic – for integration into access control systems while maintaining security, fire and life safety compliance in a cost-effective manner.

Read More

Topics: Product Development, Electric, Design, Product Series

New Addition to Exit Device Line: S5000 Storefront with Factory Installed Latch Retraction

Posted by Security Door Controls on August 17, 2021 at 9:30 AM

Read More

Topics: News, Design, New Products / Press Releases, Product Series

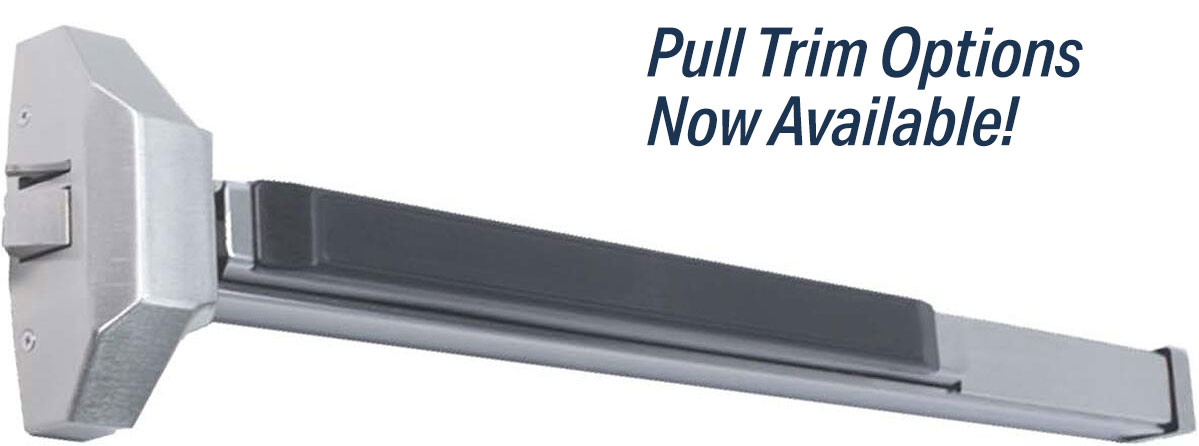

Build-In Power & Profits: S4000 Electrified Commercial Exit Device

Posted by Security Door Controls on March 17, 2021 at 10:30 AM

There are many different brands of cost effective commercial exit devices on the market. The vast majority of these devices are strictly mechanical. Today’s market demands an Economical Commercial Exit Device with Electric Latch Retraction. Not only does SDC’s S4000 Series Electrified Commercial Exit Device satisfy both market needs for a cost-effective exit device with ELR, but the S4000 also comes standard with Request-to-Exit Monitoring, enabling access control compatibility.

Read More

Topics: Electric Latch Retraction, In The News, Access Control, Applications, Design, New Products / Press Releases

SDC-BuiltAmerica-4blog

Security Access Control Systems and Electronic Lock Blog

Welcome to SDC’s official Security Access Control Systems and Electronic Lock Blog. Here you'll find our latest news and answers about everything to do with access control hardware, accessories, power and their proper application to create access and egress control solutions - including:

  • White Papers
  • Installation tips
  • Troubleshooting
  • Tech Info
