We receive a lot of inquiries about Delayed Egress Locks: where to use them and how to pick the right one for a particular door application. Although there are variety of ways to configure locks, exit devices and access control components, SDC has developed the Exit Check® line of Delayed Egress Locks to configure solutions to address the most common applications with reliability, durability and value.
Delayed egress locks are designed to delay exit through perimeter doors locked on the entry or access side for security, but also provide an easy and obvious means to open the door on the exit or egress side to meet code requirements for fire and life safety.Delayed egress lock applications include retail loss prevention, pedestrian control in public facilities, wandering patient control and nursery infant protection, as well as warehouses, technology facilities or areas containing hazardous materials or equipment.

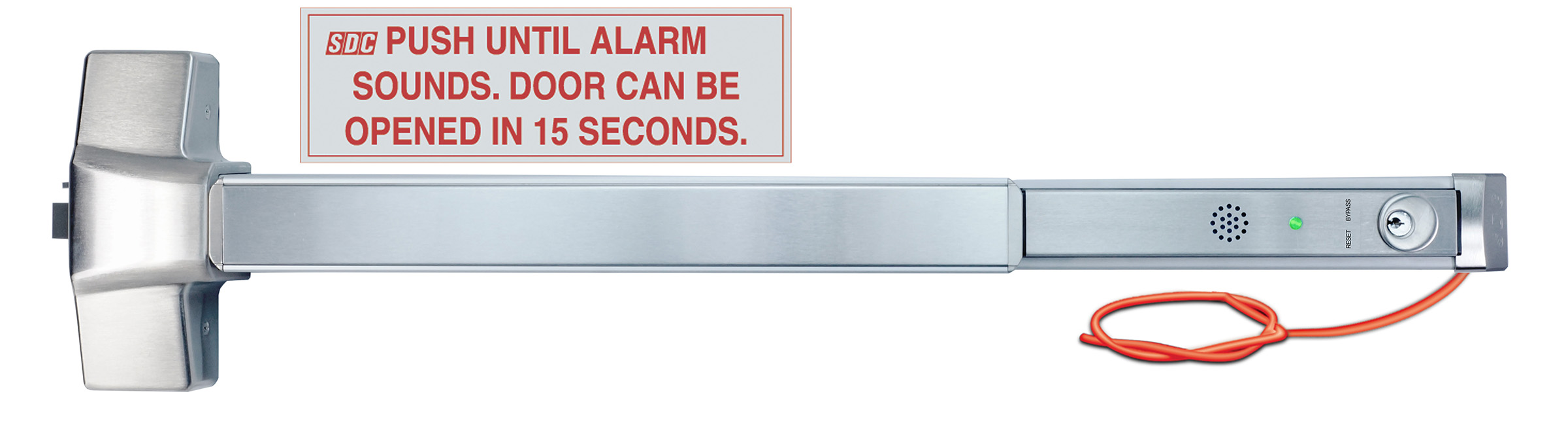

Delayed Egress Lock functionality is provided by electronic delayed egress circuitry connected to or integrated into the lock itself. SDC’s Exit Check® line of Delayed Egress Locks come in a variety of device configurations, from Electromechanical locks with delayed egress circuitry and locking components built in, to Electromechanical locks connected to separate delayed egress controllers, and from Electrified Exit Devices connected to separate delayed egress controllers, to Electrified Exit Devices like the new S6000-101 Delayed Egress All-In-One with the controller and delayed egress logic all integrated into the bar.
Delayed Egress using an Electromagnetic Lock is an ideal solution for indoor, outswing door applications with existing latching hardware. On the other hand, Delayed Egress using an Electrified Exit Device does not require existing latching hardware and is available in rim mount, mortise and vertical rod configurations.[/fusion_text][fusion_text]

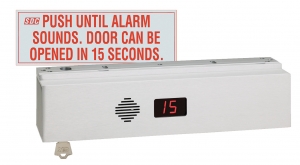

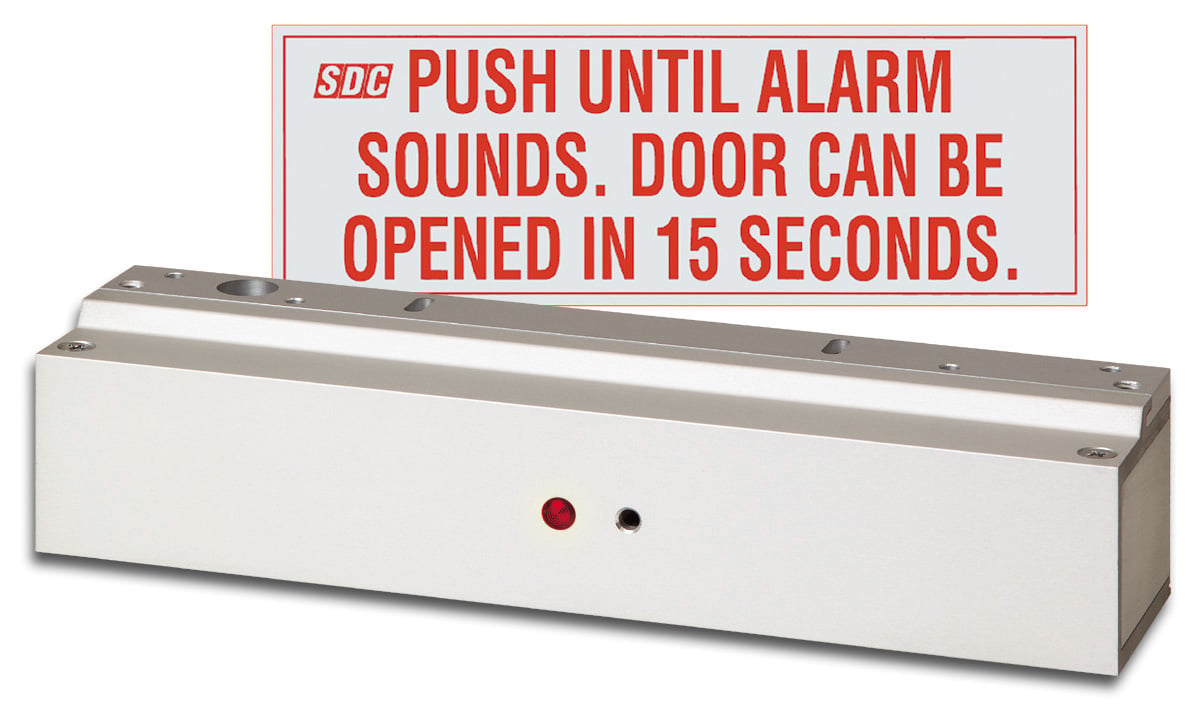

| Exit Check® Models | 1511S/T | 1581S |
|---|---|---|
| Device Configuration |
Integrated electromagnetic |
Integrated electromagnetic lock with delayed egress circuitry & locking components built into a single device |
| Environment | Indoor | Indoor |
| Audible Alarm | Verbal instructions and/or Tone | Tone Only |
| Visual Notification | LCD Countdown | Status LED |
| Bypass | Integral Keyswitch or Remote Input | Remote Input |
| Reset | Integral Keyswitch or Remote Input | Remote Input |
 |
 |

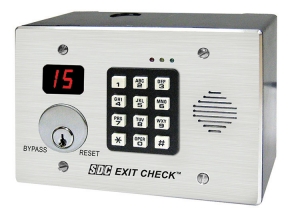

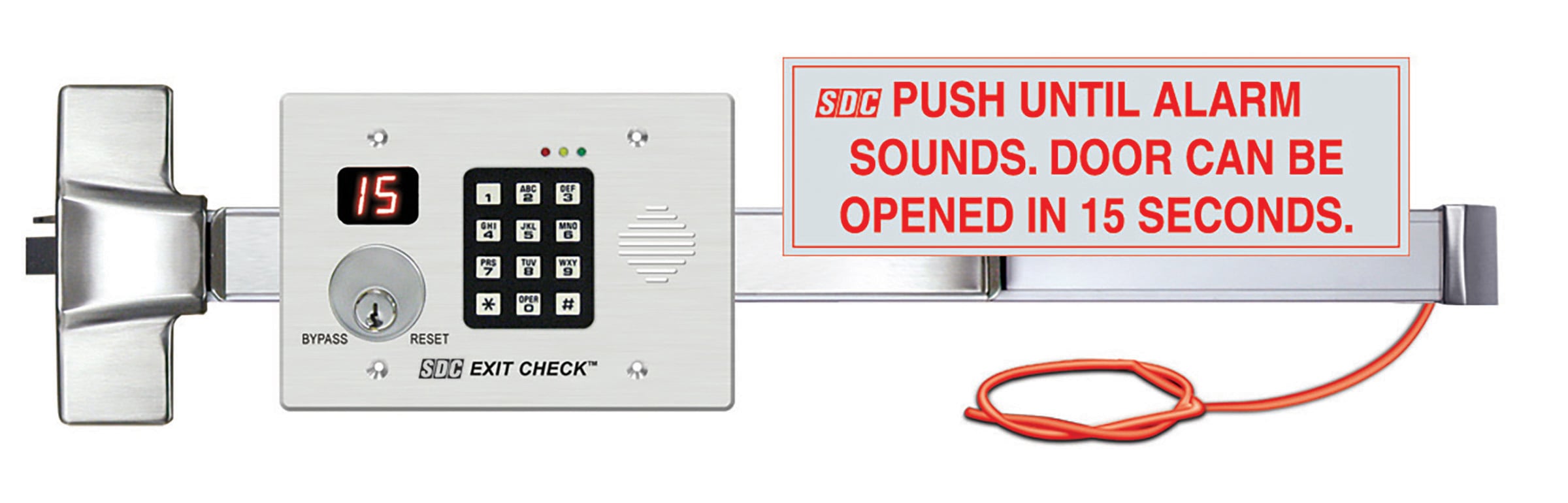

| Exit Check® Models | 101-DE/KDE | S6000-DE | S6000-101 |
|---|---|---|---|
| Device Configuration | Component based electro-magnetic lock system with separate delayed egress circuitry |
Component based panic exit device system with separate delayed egress circuitry |
Panic exit device with integral delayed egress circuitry |
| Environment | Indoor/Outdoor | Indoor | Indoor |
| Audible Alarm | Verbal Instruction and/or Tone | Verbal Instruction and/or Tone | Tone Only |
| Visual Notification | LCD Countdown | LCD Countdown | Status LED |
| Bypass | Keyswitch, Keypad or Remote Input | Keyswitch, Keypad or Remote Input | Keyswitch or Remote Input |
| Reset | Keyswitch, Keypad or Remote Input | Keyswitch, Keypad or Remote Input | Keyswitch or Remote Input |
 |
 |
 |
You should know that all SDC Exit Check® Delayed Egress Locks work with single or double door configurations, integrate with 3rd party access control systems, are compatible with 3rd party patient & infant tracking systems, and allow for immediate passage in the event of a fire/life safety emergency.
Any one of our downloadable Exit Check® Datasheets includes a list of Code Compliance that each Delayed Egress device meets to insure you’re satisfying the fire and life safety requirements of your particular installation.
To learn more about any of our Exit Check® Delayed Egress solutions, visit us at sdcsecurity.com/delayed-egress-locks.htm or call us at 1.800.413.8783 to help you select the right configuration for your application.
